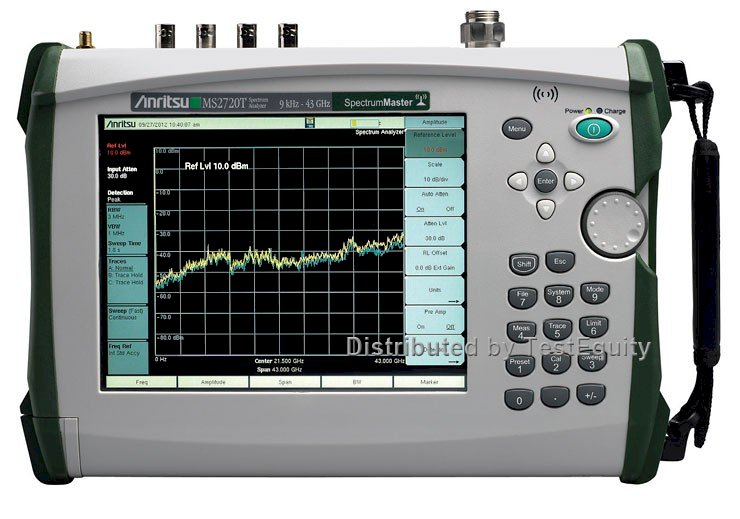

Seria MS272xTPrzenośne analizatory widma z ekranem dotykowym do 43GHz : Spectrum Master

Zapytaj o produkt
Przenośne analizatory widma z ekranem dotykowym do 43GHz : Spectrum Master
Producent:
Technologie:

Galeria:

Opis
  • MS2720T-0709 : 9 kHz do 9 GHz
  • MS2720T-0713 : 9 kHz do 13 GHz
  • MS2720T-0720 : 9 kHz do 20 GHz
  • MS2720T-0732 : 9 kHz do 32 GHz
  • MS2720T-0743 : 9 kHz do 43 GHz
  • Ekran dotykowy
  • Poziom szumów  : DANL -160 dBm przy 1 Hz RBW @ 1 GHz , włączony przedwzmacniacz
  • Pasmo RBW w zakresie 1 Hz do 10 MHz
  • Pasmo video  (VBW) w zakresie1 Hz do 10 MHz
  • Analiza AM/FM/PM
  • Zakres dynamiki: > 106 dB in 1 Hz RBW @ 2.4 GHz
  • Szumy fazowe: –104 dBc/Hz @ 10 kHz offsecie dla 1 GHz
  • Generator śledzący do 20 GHz
Opcje i akcesoria
MS2720T Spectrum Master
MS2720T-0709 Option 709, Frequency Range 9 kHz to 9 GHz
MS2720T-0713 Option 713, Frequency Range 9 kHz to 13 GHz
MS2720T-0720 Option 720, Frequency Range 9 kHz to 20 GHz
MS2720T-0732 Option 732, Frequency Range 9 kHz to 32 GHz
MS2720T-0743 Option 743, Frequency Range 9 kHz to 43 GHz
MS2720T-0809 Option 809, 9 GHz Tracking Generator (Requires Option 709)
MS2720T-0813 Option 813, 13 GHz Tracking Generator (Requires Option 713)
MS2720T-0820 Option 820, 20 GHz Tracking Generator (Requires Option 720)
MS2720T-0024 Option 24, I/Q Waveform Capture (Requires Option 9)
MS2720T-0025 Option 25, Interference Analyzer (Option 31 is recommended)
MS2720T-0027 Option 27, Channel Scanner
MS2720T-0089 Option 89, Zero Span IF Output
MS2720T-0090 Option 90, Gated Sweep
MS2720T-0431 Option 431, Coverage Mapping (Requires Option 31)
MS2720T-0509 Option 509, AM/FM/PM Measurements (Option 431 required for full functionality)
MS2720T-0019 Option 19, High Accuracy Power Meter (Requires USB Power Sensor, sold separately)
MS2720T-0009 Option 9, Demodulation Hardware
MS2720T-0880 Option 880, GSM/GPRS/EDGE Measurements (Requires Option 9)
MS2720T-0881 Option 881, W-CDMA/HSPA+ Measurements (Requires Option 9, Option 31 recommended)
MS2720T-0882 Option 882, TD-SCDMA/HSPA+ Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0883 Option 883, LTE FDD/TDD Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0884 Option 884, CDMA/EV-DO Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0885 Option 885, WiMAX Fixed/Mobile Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0007 Option 7, Secure Data Operation
MS2720T-0031 Option 31, GPS Receiver (Requires GPS Antenna, sold separately)
MS2720T-0098 Option 98, Standard Calibration
MS2720T-0099 Option 99, Premium Calibration
