Analizatory sygnałów wysokiej klasy do 26.5GHz
Producent:
Technologie:

Galeria:

Opis

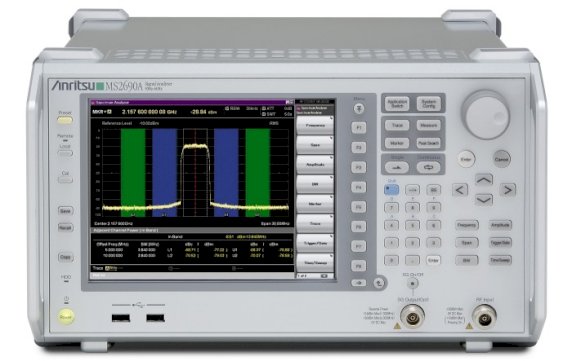

Seria urządzeń MS2690A jest wysokiej klasy analizatorami sygnałów dla systemów kolejnej generacji. MS2690A (50Hz do 6GHz), MS2691A (50Hz do 13.5GHz) i MS2692A (50Hz do 26.5GHz) mogą zawierać także generator sygnałów, zmieniając przyrząd w wygodne, posiadające wiele zastosowań rozwiązanie w jednej obudowie.

Seria analizatorów sygnałowych MS2690A ułatwia pracę grup badawczych oraz producentów infrastruktury oraz komponentów telefonii komórkowej a także będzie umożliwiała pomiary w wielu aplikacjach łącznie z GSM, GPRS, EDGE, W-CDMA, WiMax i HSPA (HSDPA & HSUPA). Analizatory te są również idealne do testów systemów LTE (Long Term Evolution) oraz 4G.

Szerokopasmowa analiza FFT (31.25MHz) umożliwia bardzo szybkie pomiary sygnałów ciągłych, wykonując takie pomiary jak CCDF, częstotliwość/czas, widmo, oraz moc/czas. Wbudowana funkcja digitalizacji przechwytująca sygnał RF, gwałtowanie zwiększa efektywność rozwoju produktu, oraz instalację oprogramowania do analizy modulacji różnych standardów.

Pozostałe cechy:

Jeden z najwyższych na świecie zakresów dynamicznych (wyświetlany średni poziom szumów (DANL) -155 dBm/Hz@2 GHz, TOI +22 dBm@2 GHz)
Doskonała dokładność poziomu oraz analizy modulacji aż do 6 GHz (z wbudowanym skalibrowanym źródłem sygnału)
Bardzo szybka analiza modulacji, dzięki zaawansowanej technice FFT przy użyciu bardzo szybkiego CPU
Bardzo szybkie interfejsy zewnętrzne umożliwiają szybszą konfigurację testów przy użyciu złączy Gigabit Ethernet, GPIB lub USB 2.0, umożliwiających zdalną kontrolę i transmisję danych
Dekodowanie DL-MAP – Rodzina analizatorów MS2690A posiada również funkcję automatycznego programowania “plug and play”, umożliwiającą pomiary sygnałów mobile WiMax. Poprzez analizę DL-MAP, sygnały WiMax mogą być mierzone bez znajomości ich parametrów

Opcje i akcesoria
MS2690A SIGNAL ANALYZER
MS2691A SIGNAL ANALYZER
MS2692A SIGNAL ANALYZER
STANDARD ACCESSORIES
  POWER CORD
P0031A USB MEMORY
Z0541A MOUSE
OPTIONS
MS2690A-001 RUBIDIUM REFERENCE OSCILLATOR
MS2690A-004 WIDEBAND ANALYSIS HARDWARE
MS2690A-008 6GHz PREAMPLIFIER
MS2690A-017 Noise Figure Measurement Function
MS2690A-020 VECTOR SIGNAL GENERATOR
MS2690A-040 Baseband Interface Unit
MS2690A-050 HDD Digitizing Interface
MS2690A-077 Analysis Bandwidth Extension to 62.5MHz
MS2690A-078 Analysis Bandwidth Extension to 125MHz
MS2690A-313 Removable HDD
MS2691A-001 RUBIDIUM REFERENCE OSCILLATOR
MS2691A-003 EXTENSION OF PRESELECTOR LOWER LIMIT TO 3GHz
MS2691A-004 WIDEBAND ANALYSIS HARDWARE
MS2691A-008 6GHz PREAMPLIFIER
MS2691A-017 Noise Figure Measurement Function
MS2691A-020 VECTOR SIGNAL GENERATOR
MS2691A-040 Baseband Interface Unit
MS2691A-050 HDD Digitizing Interface
MS2691A-077 Analysis Bandwidth Extension to 62.5MHz
MS2691A-078 Analysis Bandwidth Extension to 125MHz
MS2691A-313 Removable HDD
MS2692A-001 RUBIDIUM REFERENCE OSCILLATOR
MS2692A-003 EXTENSION OF PRESELECTOR LOWER LIMIT TO 3GHz
MS2692A-004 WIDEBAND ANALYSIS HARDWARE
MS2692A-008 6GHz PREAMPLIFIER
MS2692A-017 Noise Figure Measurement Function
MS2692A-020 VECTOR SIGNAL GENERATOR
MS2692A-040 Baseband Interface Unit
MS2692A-050 HDD Digitizing Interface
MS2692A-067 Microwave Preselector Bypass
MS2692A-077 Analysis Bandwidth Extension to 62.5MHz
MS2692A-078 Analysis Bandwidth Extension to 125MHz
MS2692A-313 Removable HDD
RETROFIT OPTIONS
MS2690A-101 RUBIDIUM REFERENCE OSCILLATOR RETROFIT
MS2690A-104 WIDEBAND ANALYSIS HARDWARE RETROFIT
MS2690A-108 6GHz PREAMPLIFIER RETROFIT
MS2690A-117 Noise Figure Measurement Function Retrofit
MS2690A-120 VECTOR SIGNAL GENERATOR RETROFIT
MS2690A-140 Baseband Interface Unit Retrofit
MS2690A-150 HDD Digitizing Interface Retrofit
MS2690A-177 Analysis Bandwidth Extension to 62.5MHz Retrofit
MS2690A-178 Analysis Bandwidth Extension to 125MHz Retrofit
MS2691A-101 RUBIDIUM REFERENCE OSCILLATOR RETROFIT
MS2691A-103 EXTENSION OF PRESELECTOR LOWER LIMIT TO 3GHz RETROFIT
MS2691A-104 WIDEBAND ANALYSIS HARDWARE RETROFIT
MS2691A-108 6GHz PREAMPLIFIER RETROFIT
MS2691A-117 Noise Figure Measurement Function Retrofit
MS2691A-120 VECTOR SIGNAL GENERATOR RETROFIT
MS2691A-140 Baseband Interface Unit Retrofit
MS2691A-150 HDD Digitizing Interface Retrofit
MS2691A-177 Analysis Bandwidth Extension to 62.5MHz Retrofit
MS2691A-178 Analysis Bandwidth Extension to 125MHz Retrofit
MS2692A-101 RUBIDIUM REFERENCE OSCILLATOR RETROFIT
MS2692A-103 EXTENSION OF PRESELECTOR LOWER LIMIT TO 3GHz RETROFIT
MS2692A-104 WIDEBAND ANALYSIS HARDWARE RETROFIT
MS2692A-108 6GHz PREAMPLIFIER RETROFIT
MS2692A-117 Noise Figure Measurement Function Retrofit
MS2692A-120 VECTOR SIGNAL GENERATOR RETROFIT
MS2692A-140 Baseband Interface Unit Retrofit
MS2692A-150 HDD Digitizing Interface Retrofit
MS2692A-167 Microwave Preselector Bypass Retrofit
MS2692A-177 Analysis Bandwidth Extension to 62.5MHz Retrofit
MS2692A-178 Analysis Bandwidth Extension to 125MHz Retrofit
SOFTWARE
MX269000A Standard software
MX269010A MOBILE WiMAX MEASUREMENT SOFTWARE
MX269011A W-CDMA/HSPA Downlink Measurement Software
MX269012A W-CDMA/HSPA UPLINK MEASUREMENT SOFTWARE
MX269013A GSM/EDGE MEASUREMENT SOFTWARE
MX269013A-001 EDGE Evolution MEASUREMENT SOFTWARE
MX269014A ETC/DSRC MEASUREMENT SOFTWARE
MX269015A TD-SCDMA MEASUREMENT SOFTWARE
MX269016A XG-PHS MEASUREMENT SOFTWARE
MX269017A VECTOR MODULATION ANALYSIS SOFTWARE
MX269020A LTE DOWNLINK MEASUREMENT SOFTWARE
MX269020A-001 LTE-Advanced FDD Downlink Measurement Software
MX269021A LTE UPLINK MEASUREMENT SOFTWARE
MX269022A LTE TDD DOWNLINK MEASUREMENT SOFTWARE
MX269023A LTE TDD UPLINK MEASUREMENT SOFTWARE
MX269024A CDMA2000 FORWARD LINK MEASUREMENT SOFTWARE
MX269026A EV-DO FORWARD LINK MEASUREMENT SOFTWARE
MX269028A WLAN (802.11) Measurement Software
MX269028A-002 802.11ac(160MHz) Measurement Software
MX269030A W-CDMA BS MEASUREMENT SOFTWARE
MX269036A MEASUREMENT SOFTWARE for MediaFLO
MX269040A UMTS Measurement Software for RF DeviceTest
MX269041A Digital I/F Control Software for DigRF2.5G/3G
MX269099A Standard waveform pattern
MX269901A HSDPA/HSUPA IQproducer
MX269902A TDMA IQproducer
MX269904A MULTI-CARRIER IQproducer
MX269905A MOBILE WiMAX IQproducer
MX269908A LTE IQproducer
MX269908A-001 LTE-Advanced FDD Option
MX269909A XG-PHS IQproducer
MX269910A LTE TDD IQproducer
MX269911A WLAN IQproducer
MX269911A-001 802.11ac(80MHz) Option
MX269912A TD-SCDMA IQproducer
APPLICATION PARTS
W2850AE MS2690A/MS2691A OPERATION MANUAL (MAINFRAME OPERATION Operation)
W2851AE MS2690A/MS2691A OPERATION MANUAL (MAINFRAME REMOTE CONTROL)
W2852AE MS2690A/MS2691A OPERATION MANUAL (SIGNAL ANALYZER FUNCTION OPERATION)
W2853AE MS2690A/MS2691A OPERATION MANUAL (SIGNAL ANALYZER FUNCTION REMOTE CONTROL)
W2854AE MS2690A/MS2691A OPERATION MANUAL (SPECTRUM ANALYZER FUNCTION OPERATION)
W2855AE MS2690A/MS2691A OPERATION MANUAL (SPECTRUM ANALYZER FUNCTION REMOTE CONTROL)
W2856AE MS2690A-020/MS2691A-020 OPERATION MANUAL (OPERATION)
W2857AE MS2690A-020/MS2691A-020 OPERATION MANUAL (REMOTE CONTROL)
W2914AE MS269xA OPERATION MANUAL(IQproducer)
W2929AE MS269xA OPERATION MANUAL (STANDARD WAVEFORM PATTERN)
W3130AE MS2690A/MS2691A/MS2692A-040 Operation Manual (OPERATION)
W3117AE MS2690A/91A/92A Signal Analyzer Phase Noise Function (Operation)
W3118AE MS2690A/91A/92A Signal Analyzer Phase Noise Function (Remote)
W2919AE MX269010A OPERATION MANUAL (OPERATION)
W2954AE MX269010A Operation Manual (REMOTE CONTROL)
W3098AE MX269011A Operation Manual (OPERATION)
W3099AE MX269011A Operation Manual (REMOTE CONTROL)
W3060AE MX269012A Operation Manual (OPERATION)
W3061AE MX269012A Operation Manual (REMOTE CONTROL)
W3100AE MX269013A Operation Manual (OPERATION)
W3101AE MX269013A Operation Manual (REMOTE CONTROL)
W3044AE MX269015A Operation Manual (OPERATION)
W3045AE MX269015A Operation Manual (REMOTE CONTROL)
W3157AE MX269016A Operation Manual (OPERATION)
W3158AE MX269016A Operation Manual (REMOTE CONTROL)
W3014AE MX269020A Operation Manual (OPERATION)
W3064AE MX269020A Operation Manual (REMOTE CONTROL)
W3015AE MX269021A Operation Manual (OPERATION)
W3065AE MX269021A Operation Manual (REMOTE CONTROL)
W3209AE MX269022A Operation Manual (OPERATION)
W3210AE MX269022A Operation Manual (REMOTE CONTROL)
W3201AE MX269024A Operation Manual (OPERATION)
W3202AE MX269024A Operation Manual (REMOTE CONTROL)
W3203AE MX269026A Operation Manual (OPERATION)
W3204AE MX269026A Operation Manual (REMOTE CONTROL)
W2860AE MX269030A OPERATION MANUAL (OPERATION)
W2861AE MX269030A Operation Manual (REMOTE CONTROL)
W3003AE MX269040A Operation Manual (W-CDMA OPERATION)
W3004AE MX269040A Operation Manual (GSM/EDGE OPERATION)
W3005AE MX269040A Operation Manual (OVERALL REMOTE CONTROL)
W3006AE MX269041A Operation Manual (BBIF OPERATION)
W3007AE MX269041A Operation Manual (BBIF REMOTE CONTROL)
W3008AE MX269041A Operation Manual (IQ Pattern/DUT Control Producer)
W3016AE MX269041A Operation Manual (Integrated Software for RF Device Test)
W3108AE MX269050A Operation Manual (OPERATION)
W3109AE MX269050A Operation Manual (REMOTE CONTROL)
W2915AE MX370101A/MX269901A HSDPA/HSUPA IQproducer OPERATION MANUAL
W2916AE MX370102A/MX269902A TDMA IQproducer OPERATION MANUAL
W2917AE MX370104A/MX269904A Multi-carrier IQproducer OPERATION MANUAL
W2918AE MX370105A/MX269905A Mobile WiMAX IQproducer OPERATION MANUAL
W3023AE MX370108A/MX269908A Mobile WiMAX IQproducer OPERATION MANUAL
W3153AE MX370109A/MX269909A XG-PHS IQproducer OPERATION MANUAL
W3221AE MX370110A/MX269910A LTE TDD IQproducer OPERATION MANUAL
W3488AE MX370111A/MX269911A WLAN IQproducer OPERATION MANUAL
W3582AE MX370112A/MX269912A TD-SCDMA IQproducer OPERATION MANUAL
W3655AE MS269xA-017/MS2830A-017 Noise Figure Measurement Function Operat
W3656AE MS269xA-017/MS2830A-017 Noise Figure Measurement Function Remote
MA1612A FOUR-PORT JUNCTION PAD
MP752A TERMINATION
MA2512A Band Pass Filter
J0576B COAXIAL CORD, 1.0M
J0576D COAXIAL CORD, 2.0M
J0127A COAXIAL CORD, 1.0M
J0127B COAXIAL CORD, 2.0M
J0127C COAXIAL CORD, 0.5M
J0322A COAXIAL CORD, 0.5M
J0322B COAXIAL CORD, 1.0M
J0322C COAXIAL CORD, 1.5M
J0322D COAXIAL CORD, 2.0M
J1264 N-SMA Adapter
J1261A ETHERNET CABLE (SHIELD TYPE)
J1261B ETHERNET CABLE (SHIELD TYPE)
J1261C ETHERNET CABLE (SHIELD TYPE)
J1261D ETHERNET CABLE (SHIELD TYPE)
J0008 GPIB CABLE, 2.0M
J1373A AUX Conversion Adaptor
B0597A RACK MOUNT KIT
B0589A Carrying Case
Z0975A KEYBOARD (USB)
Z1082A 10/13MHz REFERENCE SIGNAL INPUT
Z0979A Setup Service Option
Z1037A Installation Kit
Z1029A Signal Translator
Z1029B Signal Translator
J1417A I/O BOX
J1398A N-SMA ADAPTOR
Z1487A MS269x Modification for Option 313
Z1487B MS269x Modification kit for Option 313
Z1487C MS269x Modification kit 2 for Option 313
B0633A Carrying Case(Soft Type)
MP59B 50Ω Coaxial Switch
